How to Install a Mini Split in an Attic Room (Knoxville Builder Guide)

Installing a mini split in an attic room is one of the best ways to make a finished attic usable year-round in Knoxville's climate. But attics present unique challenges including extreme weather conditions and limited access, so placement, insulation, and sizing matter far more than a standard bedroom install. Here's what the job really involves.

Updated October 16, 2026

What to Know First

• Do a load calculation to get the right mini split size, because attics often need 20–25 BTU per square foot versus 10–12 for main-floor rooms.

• Plan the route for your line set so the refrigerant lines do not have to sit in the heat of the attic. In summer that heat can top 130°F.

• Hire a licensed electrician to put in the dedicated circuit, and hire an HVAC tech to do the vacuum and refrigerant work, so your warranty stays valid.

• It is a good idea to check Knox County permits, radon pipe locations and ceiling height rules before you drill any holes.

• Installation usually takes several hours to a full day, and it can take longer if you need to coordinate electrical work.

Planning Attic Mini Split Layout and Size

Attics are tougher than regular rooms. You are dealing with sloped ceilings, knee walls, hot roof decks and tight access. Attics can reach extreme temperatures exceeding 130°F in summer, which changes everything about how you size and place a unit. Ductless mini split systems require careful planning for installation in attics-skip the planning phase and you'll regret it.

Permits and codes: In Knoxville and Knox County, permits may be required for HVAC installations based on local codes. You'll need permits for both the new mechanical equipment and the electrical circuit. Don't skip this.

Selecting unit size should be based on accurate calculations considering attic conditions. I use a Manual J load calc for every attic job. A typical 250–350 square foot finished attic bedroom in Knoxville often lands in the 9,000–15,000 BTU range depending on insulation, windows and roof color. An oversized mini split causes short-cycling and inefficiency-especially bad for dehumidification in our humid summers. An undersized mini split cannot effectively cool your space on those July afternoons when the roof deck is radiating heat into the room.

Mini split systems can facilitate zoned climate control without extending existing ductwork, which makes them ideal for attic rooms. For a single attic bedroom, a single-zone system is usually the right call. Multi-zone systems connect multiple indoor units to one outdoor unit, which makes sense only if you're already running a condenser for other rooms in the house.

One Knox County quirk: check your attic for the capped radon vent pipe labeled "RADON PIPE." Do not block access to it when planning your mini split location. Knox County lets that pipe stay capped until testing shows 4 pCi/L or higher, but you need room to add a fan later if needed.

Before buying equipment, decide: BTU size, indoor head style (wall mount, low-wall console or ceiling cassette), outdoor unit location (ground pad, wall bracket or roof stand), and your line set path.

Indoor and Outdoor Locations in Attics

Proper placement of indoor and outdoor units is crucial for effective airflow and service access. In an attic, sloped ceilings are going to limit your options.

Indoor units should be mounted about seven feet above the floor, ideally on a full-height gable wall, blowing across the room rather than directly at the bed. Good airflow is crucial for mini split efficiency. When the room is mostly sloped ceiling, use the short flat section near the ridge or install a low-wall console on a knee wall with enough clearance above for airflow. Always check your brand's installation manual for clearance specs-typically 4–6 inches above and to the sides.

Gravity drainage is preferred for condensate systems in attics. Run the drain through an exterior wall or into a plumbing drain with a proper trap. Managing condensate is critical so you do not get leaks into the ceiling below. If you can't get gravity, a condensate pump works but needs access for maintenance.

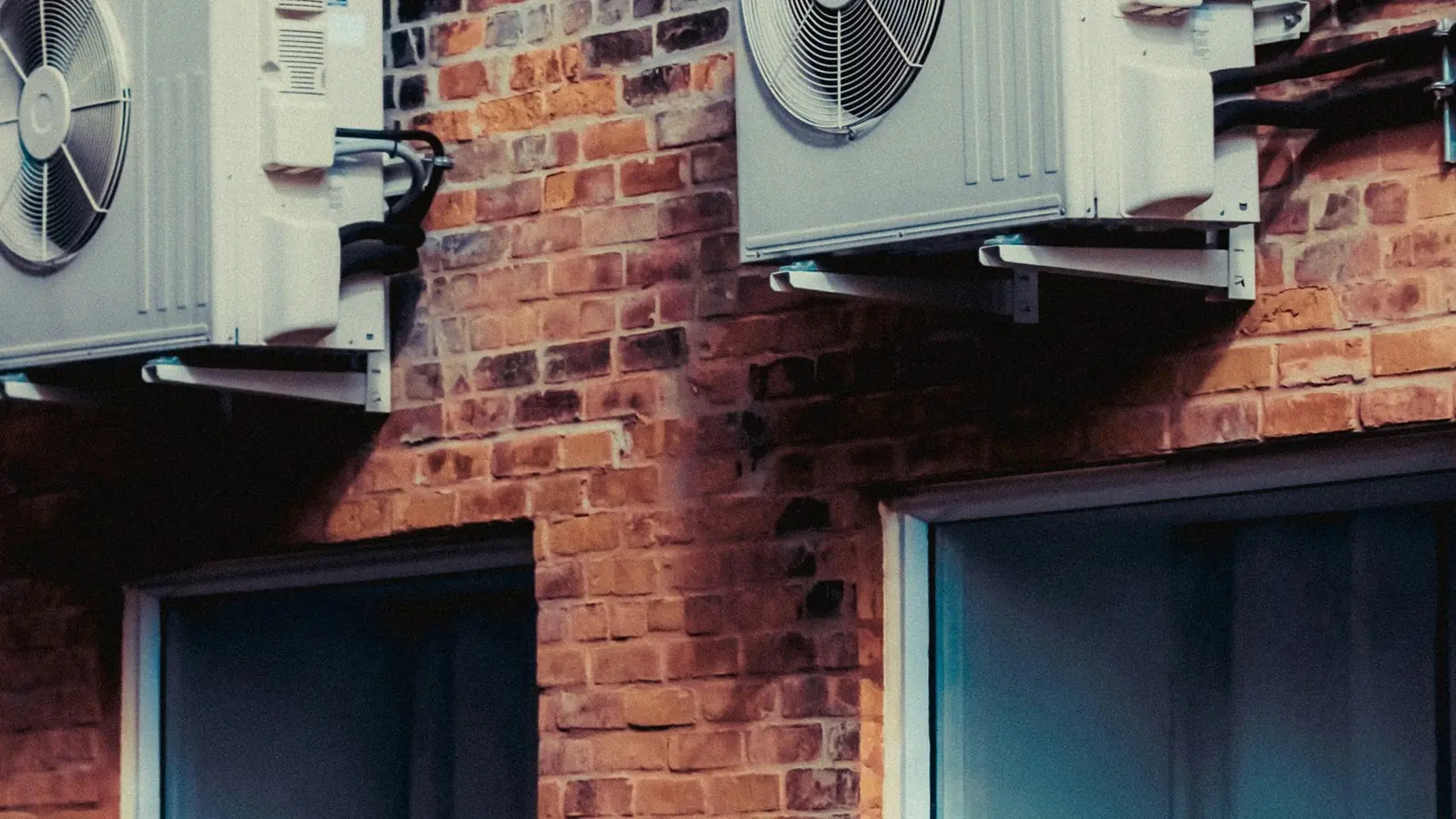

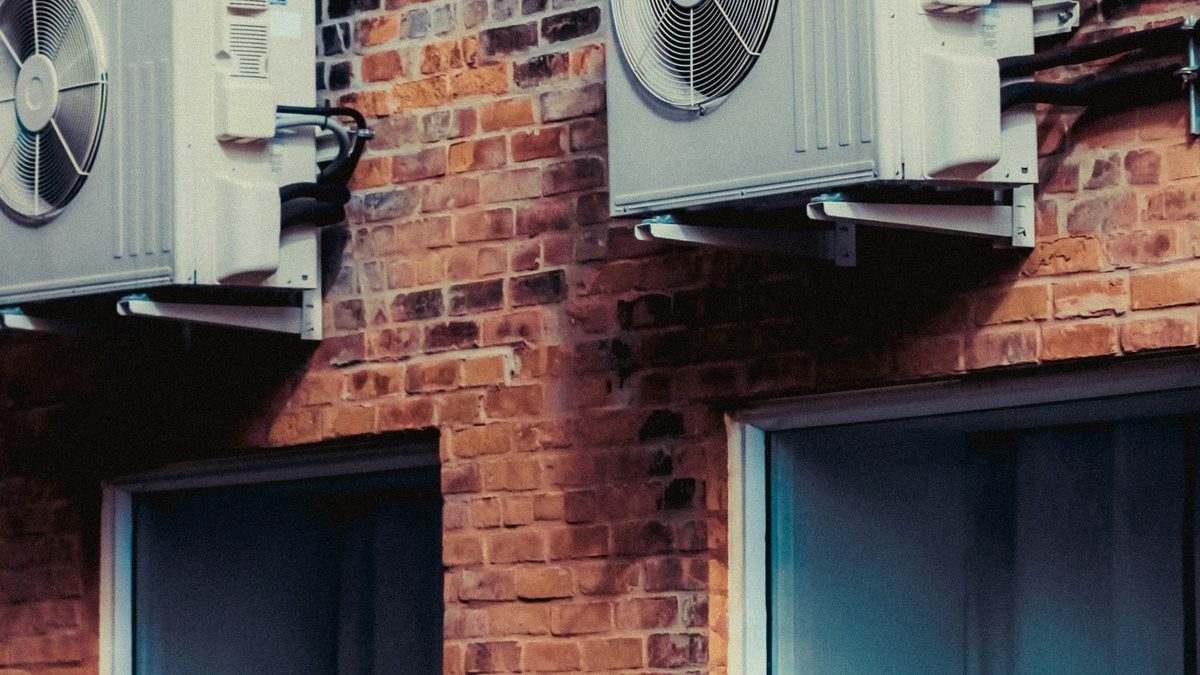

For the outdoor compressor, I prefer a concrete pad at grade along the gable end-easy to service, with little vibration into the house. Wall brackets work under eaves but need to be attached to structure. You'll want to keep at least 12–24 inches of clearance from walls and shrubs. Respect the manufacturer's max line set length and elevation-most units allow 25–35 feet of run with specific vertical lift limits.

Routing and Protecting the Attic Line Set

The line set has insulated refrigerant lines, a control cable and sometimes the condensate drain. In a vented attic, summer temps are going to destroy cheap insulation fast.

Keep the runs short and straight. I run from the indoor unit through the exterior wall and down to the condenser, avoiding long exposed stretches in the attic space. Insulating refrigerant lines keeps condensation and operational problems away. You need proper insulation to keep the equipment efficient and make it last in an attic-I usually add an extra layer of closed-cell insulation on long runs.

Drill the line set hole with a 2.5–3 inch hole saw, sloped slightly down toward the outside so water drains out. Check both sides before you cut so you don't hit wires, plumbing or that radon vent pipe. Seal penetrations from both sides with foam or silicone and use pest-tight escutcheons outside. Put PVC or metal line set covers on the exterior wall for UV protection.

Most brands don't let you field-shorten pre-charged DIY line sets without special procedures. Conventional systems need a licensed tech to flare, connect and pull vacuum on the refrigerant lines.

How to Install a Mini Split in an Attic Room

You can handle mounting brackets, drilling, routing the line set and the condensate drain. Leave the 240V wiring and refrigerant work to licensed pros.

Prep: Clear working space, lay temporary plywood on joists, and confirm the room stays at least 50°F if drywall patching is involved. A dedicated circuit is needed for mini split systems. Mini splits usually need 220V wiring for operation, though some mini splits can operate on 110–120V power-check your unit's nameplate. It's a good idea to consult an electrician for electrical setup. I always bring in a local electrician for this step.

Indoor unit: Find studs, mount the bracket level with lag screws, and drill your line set hole. Hang the head, connect the interior line set and drain, and click the unit onto the bracket.

Outdoor condenser: Level a pad or lag a wall bracket into structure-not just siding. Install anti-vibration pads.

Line set connections: Uncoil carefully, run along the planned route, make flare connections with torque wrenches, and insulate all fittings. Your HVAC professional pulls vacuum with a pump and gauges, holds it, then releases the refrigerant charge.

Startup: Power on, run cooling then heating, check temperature drop, listen for odd noises and confirm the room holds setpoint.

Attic Tips and When to Call a Pro

Attic environments are rough on equipment. A little extra attention is going to help keep things running.

• Clean air filters every month-dusty attics clog them fast

• Clean condenser coils at least once a year

• Check drainage lines regularly to prevent clogs, especially before cooling season

• Getting annual professional maintenance is going to help the system last

• Make sure line set insulation has not been chewed by pests or buried under new blown-in insulation

That capped radon pipe in the attic has to stay accessible and labeled "RADON PIPE." Your mini split lines and platforms shouldn't block it. The county radon handout calls for a 3- or 4-inch tee in at least 4 inches of gravel under the slab, with the pipe labeled on each floor and in the attic.

Common mistakes I see: a unit that is too small for a dark roof, no plan for condensate freezing on unconditioned runs, and ignoring max line length. Call a professional when your panel is near capacity, you'd need to cut structural members, or you don't own a vacuum pump and gauge set.

A typical attic mini split install takes me and a helper a long day or a weekend with electrical work to coordinate. With solid planning up front, dead attic space is going to turn into one of the best rooms in the house.

FAQ

These cover common attic-specific questions that didn't fit well into the main steps above.

Do I need a permit to install a mini split in an attic room in Knoxville?

In most cases, yes. Knox County and the City of Knoxville require permits for new HVAC equipment and new electrical circuits. Call the local building department or check online before you start work.

Can you run the line set through attic insulation?

You can route a line set through an attic, but support it properly and keep the insulation in good shape. Don't just bury it loose in blown-in insulation-extreme attic heat is going to hurt performance. I prefer building a framed cover when the run is long.

Will an attic mini split heat the rest of the house?

An attic mini split is going to serve that room or zone only. Some heating or cooling may move down the stairs, but it won't replace your main HVAC system for the rest of the floor plan.

Is a DIY mini split kit good enough for an attic room?

Some pre-charged DIY kits work fine when installed carefully, but attic runs still have to respect maximum line set length, bend radius and insulation requirements. Read your brand's warranty terms-many need a certified tech for startup.

What attic temperature for drywall work in winter?

Keep the room at 50°F or warmer starting 48 hours before taping or mudding until the joint compound is fully dry. You can hang mechanical down to about 40°F, but finishing needs that extra warmth.
