How to Install a Mini Split Drain Line (Step‑by‑Step for DIYers)

Many homeowners overlook proper drain line installation when they put in a ductless mini split, and it ends up being the one thing that causes the most damage. I've been building and remodeling homes in Knoxville for years, and I can tell you the drain line is a small detail that leads to big problems when done wrong. Here's how to get it right.

Updated October 9, 2026

Key Takeaways

• A properly sloped drain line keeps condensate from pooling in your walls, ceilings and floors, which prevents water damage. Good drainage also stops mold before it starts, so it protects your indoor air quality too.

• The mini split indoor unit has to drain by gravity with a slope that goes down the whole way. If that is something that can't happen, you'll need a condensate pump.

• The drain pipe needs to slope at least 1/4 inch for every 10 feet that it runs horizontal. There can't be any low spots or uphill sections anywhere in the line.

• You can handle the drain line on a new ductless mini split installation, but fixes that have to go through finished walls or long concealed runs might be worth hiring out to someone else.

• Everything here comes from a working builder in Knoxville, TN, where the summers are humid and the homes are built with wood frames. That makes this step especially important.

How a Mini Split Drain Line Works

Whenever your mini split system is running in cooling or dehumidify mode, moisture in the indoor air turns into water on the cold evaporator coil. That water drips into a built-in drain pan that sits beneath the coil and then it goes out through a small plastic drain pipe to the outside or to a plumbing connection.

A central air conditioning air handler usually has a secondary safety pan, but most wall-mounted mini splits don't have one. If your drain line fails, water backs up and leaks straight into your drywall, ceiling finishes and framing. The result is that you get stains, peeling paint, noise from dripping, moldy smells and in wood-framed homes, long-term rot. Drain lines must be installed to prevent standing water or backflow - there is no backup plan that is built in.

Typical drain line sizes are about 5/8-inch OD flexible vinyl hose from the factory, and most installers switch to 3/4-inch rigid PVC for runs that are longer. Most models have the drain go out alongside the lineset on the right-hand side of the unit.

Plan the Drain Route First

Plan the drain path before you attach the mounting bracket to the wall. This one step saves more headaches than anything else in the whole installation.

Check your mini split manual for what drain pipe materials you can use, the maximum run length and how much vertical drop is allowed. For example, Daikin's Aurora 2-Zone kit only includes a rubber drain hose that is 16 feet long, so that's a hard limit before you need more materials.

The indoor unit has to be mounted high enough on the wall so gravity can carry water downhill through the entire run. A common mistake is routing the discharge line wrong because the unit was installed too low. If you're going through the exterior wall, a typical hole for refrigerant lines should be three inches wide, which is big enough for the lineset, electrical conduit and drain hose bundled together. Mini-split systems need a conduit for electrical wiring and drain, so plan for all of it in one penetration.

If you're tying into a plumbing drain instead, local code usually requires a trap and an indirect connection with an air gap. In older homes with brick veneer, think about where that wall penetration lands outside so the discharge does not drip onto walkways or decks.

Tools and Materials for the Drain Line

Getting everything together before you start saves trips to the store while the unit is half-mounted. Here's what I set out on every job:

Tools: drill/driver, level, 2–3-inch hole saw, 1-inch drill bit, PVC cutter or fine-tooth saw, safety glasses, tape step.

Materials: manufacturer-supplied flexible condensate hose, 3/4-inch schedule-40 PVC drain pipe, 3/4-inch fittings (90° elbows, 45° elbows, couplings), PVC primer and cement, pipe straps or clips, rubber grommet or sleeve for wall penetrations.

Optional equipment: condensate pump (for when gravity won't work), pipe insulation for interior runs, UV-resistant line-cover for exterior sections, and a small funnel for testing with water later. Rigid PVC is recommended over standard corrugated flex pipes for long runs because flex pipes sag and trap debris.

Connecting to the Indoor Unit Drain Outlet

Every ductless mini indoor unit has a dedicated condensate outlet stub - usually on the right side behind the front cover - with an included adapter or clamp. Remove the front cover and lower trim to get to it.

Push the flexible drain hose fully onto the outlet and secure it with the provided clamp or a stainless worm-drive hose clamp. Don't tighten too much - plastic fittings crack easily. Avoid traps and kinks in the drain line to make sure water drains the right way. Run the first 12–18 inches with a gentle downward slope and absolutely no upward dips. Any trap right at the unit will cause water to back up into the pan. Water should flow smoothly to the discharge point without leaks from the very first inch.

Running the Drain Pipe With Proper Slope

Gravity is doing all the work here. Your job is to give the water a consistent, gentle fall with no low spots or obstructions.

You need to maintain a slope of 1/4 inch per 10 feet of horizontal run. More slope is fine, but less is asking for trouble. GREE's installation guidelines specify a 1–2% grade, which lines up with that mark.

Use a level or laser to mark your slope from the indoor unit to the exit point. Check for any spot where the pipe would have to run back uphill. Switch from flexible hose to rigid 3/4-inch PVC with a barbed adapter or slip fitting, then run a gently sloped horizontal section to the wall penetration.

Drill the combined hole through the exterior wall, run the drain hose through the sleeve, and make sure it comes out with a visible downward pitch. Secure the drain pipe every three feet with clips or straps along studs or exterior siding so it can't sag and create traps over time. In a humid climate like Knoxville's, wrap insulation around the drain line on interior sections to prevent condensation on the outside of the pipe from wetting drywall or ceilings.

Exterior Termination, Traps and Condensate Pumps

You can discharge condensate outside onto grade, into a gravel bed or into a plumbing drain via an indirect connection. Each one has a right way and a wrong way.

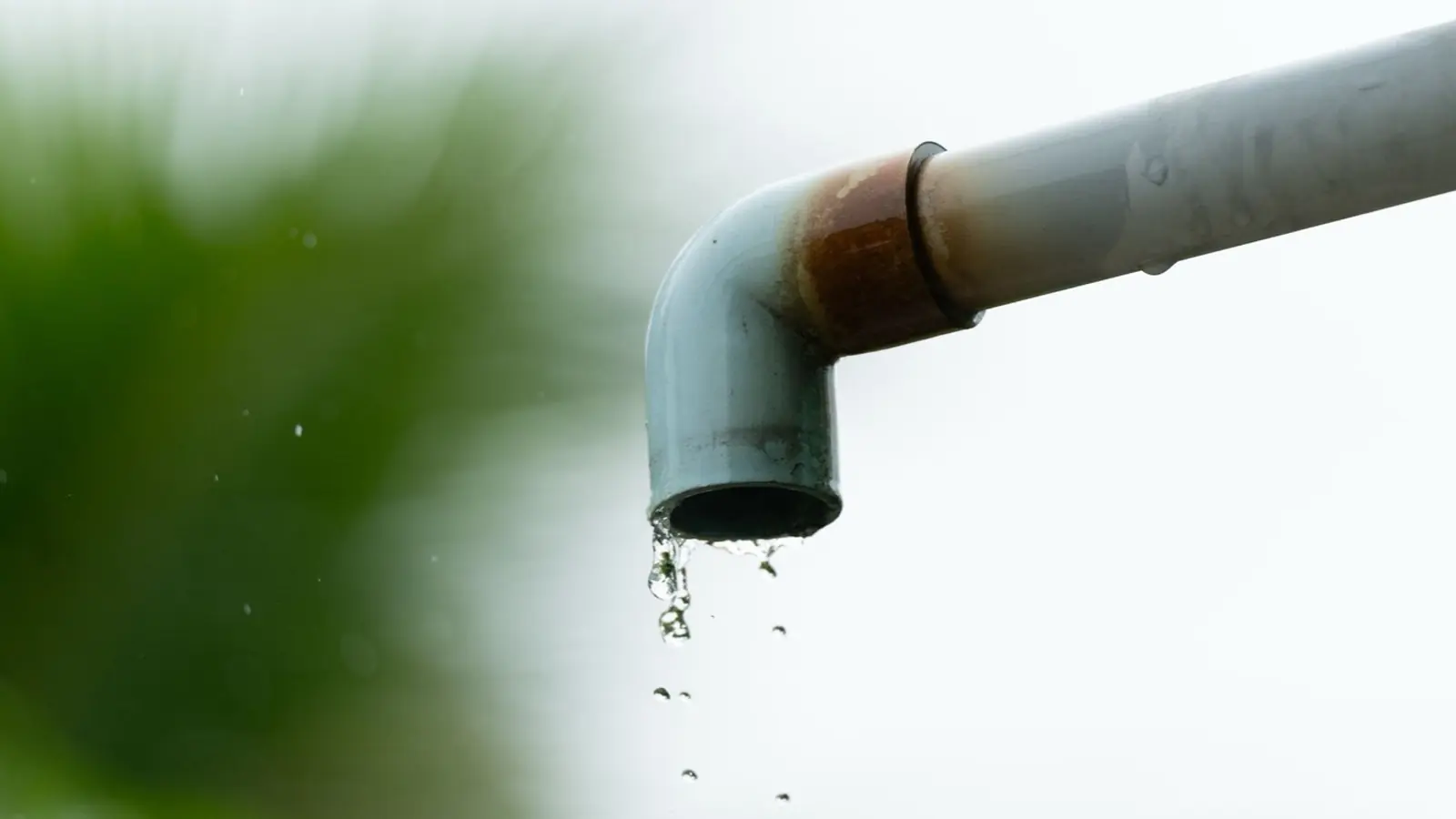

For a simple exterior discharge, the pipe exits the siding, drops vertically 6–12 inches above grade, and points away from foundations and walk paths. The drain line should not discharge into a sewer system without a proper arrangement - plumbing codes require an air gap and trap for any connection to sanitary drains. You can add a visible P-trap on long exterior runs to block insects and air from blowing back into the indoor unit, but never place the trap higher than the unit's drain pan.

Condensate pumps are often not required for gravity drains, but in tight spots like finished basements or interior rooms, a pump mounted near the indoor unit lifts water to a higher discharge point. Selecting the wrong condensate pump is a frequent installation error, so match the pump's rated head to your vertical lift and pick capacity at least 2–3 times your expected peak flow. An anti-siphoning device prevents pump overflow issues. Improperly wiring a condensate pump can lead to system failures, so connect it to the mini split's control wiring so the unit shuts down if the reservoir overflows.

Testing, Maintenance and Calling a Pro

Testing the drain before sealing the installation is crucial. Do not button up covers or close walls until you've verified flow.

Slowly pour a quart or two of clean water into the indoor unit's drain pan and watch for a strong, steady stream at the discharge point. Then test the system by running it in cooling mode for several minutes and checking every visible joint for leaks, drips or seepage. Fix issues now - taking time here avoids expensive damage later.

For ongoing maintenance, inspect the drain line at least twice a year for blockages. Regular maintenance helps prevent clogs from algae or dirt in the drain line, and regular maintenance keeps mini-split systems operating efficiently over their lifespan. Flush with warm water and mild detergent; avoid harsh chemicals. Condensate pan tablets are an optional but reliable investment in keeping slime and odors down.

When should you call a pro? Long concealed runs to plumbing connections, tying into existing traps under code, routing multiple indoor units to one drain manifold, or any condensate pump wiring that isn't clearly documented. In my case, I've found that any time a homeowner is unsure about the process, bringing in a licensed HVAC or plumbing contractor provides peace of mind and protects the manufacturer's warranty. I've seen forum threads - whether from 1y ago, 2y ago, 4y ago or even 6y ago - where every self-described diy hvac guy who skipped the drain step ended up with a ceiling full of mold. Even a 1mo ago post on the Taddy Digest had a homeowner sharing photos of water damage from a drain that was never tested. If playback does not begin shortly on any install video you are watching, reload and follow along using the transcript - but remember that no video replaces reading your specific unit's manual. The building code in your area may require things the video doesn't cover.

Finally, this is a cool home improvement project and a worthwhile step in the overall install, but don't let the simplicity of the concept lead you to skip the details. Proper drainage is what separates a reliable heating and air system from an expensive mistake.

FAQ

These questions cover topics that come up regularly on job sites and in talks with you but weren't fully addressed above.

Can I run my mini split drain line into a plumbing vent or trap?

Most plumbing codes do not allow you to connect condensate directly into a vent stack. Any connection to a drain has to be open, meaning an air gap and properly trapped to keep sewer gases out. Check with your local Knox County plumbing inspector or a licensed plumber before cutting into any existing drain or vent piping. Getting this wrong can create noise, odors and code violations.

How far can a ductless mini split drain line run by gravity?

Many manufacturers allow fairly long runs if you keep at least 1/4 inch per 10 feet of continuous slope. Practical limits come from how many turns you need and how much space you have to keep the pipe going down. Check your specific mini split system manual for maximum equivalent length. If the run gets too long or tangled, a condensate pump is the right call. Different sizes and models have different limits, so don't assume one brand's specs fit another.

Does the Mini Split Drain Pipe Need Insulation?

Interior runs in humid climates - and Knoxville qualifies - benefit from insulation to prevent sweating on the outside of the pipe. That can stain drywall or ceilings. Exterior runs are usually left uninsulated unless they are packed in a line-set cover for appearance. Foam pipe insulation is readily available at any home improvement store, so this is an easy, recommended addition.

What Size Drain Pipe for a Mini Split?

Most ductless mini split indoor units use a factory drain stub sized for about 5/8-inch OD hose. That's usually switched to 3/4-inch PVC for the main run. Confirm the required size in your unit's manual and never reduce pipe diameter downstream from the indoor unit - that's a guaranteed way to create a clog point.

Why is my mini split dripping water inside after I installed a drain line?

Common causes include no slope or back-slope in the line, a sagging section that forms a trap, a clogged outlet at the exterior end, or a kink in the flexible hose at the unit. To troubleshoot: flush the line with water, re-strap any low spots, check for continuous fall with a level, and look for algae or debris at the termination point.
