How to Install a Mini Split Line Set Cover (Line Hide) Like a Pro

A mini split line set cover turns a tangle of copper, foam, and wires into a clean run down your exterior wall. The install takes an afternoon, and the payoff lasts years. Here is how I do it on jobs around Knoxville, and how you can do it yourself.

Updated October 6, 2026

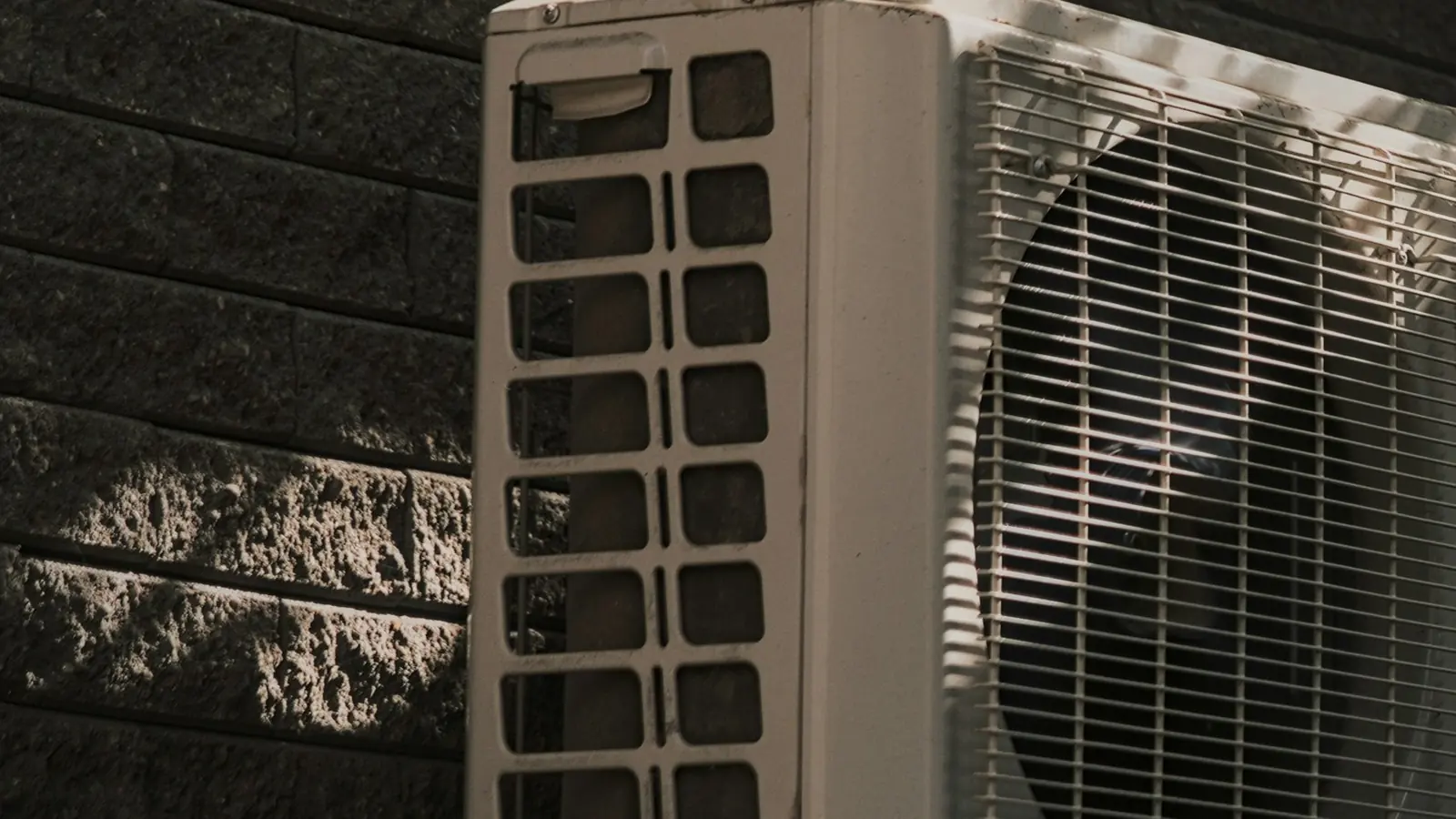

Mini split condenser on dark brick wall with white mini split line set cover installation running down from above

What to Know

A line set cover is what protects the refrigerant lines, drain hose and electrical cable for mini splits and central AC from damage by UV, weather and physical contact. It also gives the exterior a finished look.

What a Mini Split Line Set Cover Actually Does

The line set on a mini split is the group of lines that runs from the indoor head to the outdoor condenser. It has two copper refrigerant lines (a smaller liquid line and a larger suction line), a condensate drain hose, and a low-voltage communication cable. A line set cover, which some people call a "line hide," is a snap-together plastic or metal channel that holds all of it against the wall.

Here's what the cover actually gives you:

UV and physical protection. UV radiation cracks foam insulation on exposed lines, sometimes within one to two years of direct sun. Line set covers protect refrigerant lines from that UV damage and shield them from weed trimmers, ladders and anything else that hits the wall. You should use UV-resistant materials for any outdoor installation.
Weather and efficiency. Good line set covers keep moisture out and prevent physical damage. On heat pumps and air conditioners, insulation that is in good shape keeps capacity and SEER/SEER2 performance closer to what the unit is rated for. Exposed refrigerant lines can drag system efficiency down by several percentage points as the insulation breaks down. Protecting that insulation prevents heat gain and condensation problems. A cover keeps the insulation in good shape over time.
Appearance. A line cover covers the foam-wrapped copper and cables so a mini split install looks finished instead of temporary.

Pick the Right Line Set Cover Kit for Your System

Sizing. Measure the grouped diameter of your split line set with both refrigerant lines, the drain hose and the cable wrapped together. A 3-inch (75 mm) cover fits most mini split line set groups from 9K to 18K BTU units. Go with a 4-inch (100 mm) cover for 24K+ systems, thicker insulation or multi-zone runs. Mini split line set covers come in various lengths and widths, and when you're not sure it's better to size up.
Material. PVC and plastic covers are lightweight, UV-resistant and easy to cut. PVC line set covers can handle heat from -40 to 140 degrees Celsius, which covers anything a residential wall will throw at them. Metal covers (aluminum or coated steel) can take more wear and work well for rooftop or commercial runs, but they cost more and they're harder to work with. High quality PVC is the good value pick for most residential mini split or central AC installs.
Length. Calculate straight footage from the wall penetration to the outdoor unit. Add one extra 3 to 4 ft section. It costs a few dollars and it'll save you a second trip if a cut goes wrong.
Fittings. A complete cover kit usually includes straight duct sections, a wall cover plate, 90-degree elbows, end caps, a flexible duct transition piece, and screws. Double-check the box before you order. Some kits from a different seller or a lower price tier skip stainless hardware or flexible sections. Customer reviews are a sanity check here. I avoid kits where customers keep finding stripped screws or warped lids in repeated complaints. Reviews from verified purchases carry more weight than anonymous ones. Check the overall star rating, but read the mixed opinions and percentage breakdown of low scores for specifics on fit and hardware.
Color and finish. White is standard. Brown, gray and black match common siding and exterior wall colors. Line set covers can be painted to match exterior walls. Clean the surface, rough up with 220-grit sandpaper, apply a plastic bonding primer, then use exterior latex or acrylic paint. Lighter colors absorb less heat and last longer in full sun, so they give you a clean appearance over time.

Plan the Route Before You Drill

Start and end points. Find the indoor head's wall penetration and the outdoor unit's pad or wall bracket. Keep the path for the line set short and direct so you minimize bends.
The goal. Keep the cover run as straight, vertical and short as you can. A plumb vertical drop from the wall cap to the condenser looks clean and sheds water naturally.
Obstacles. Map around windows, hose bibs, gas meters, electrical panels and deck ledger boards. Think about future additions too. If a patio or deck is in the plans, route the line cover where framing won't clash with it later.
Codes and clearances. Keep covers a few inches clear of electrical service lines and gas meter regulators. At grade level, end the cover above where weed eaters hit and splashback happens.
Knoxville-specific notes. Knox County's frost line depth is 12 inches, so outdoor concrete pads sit at or just above grade. End the cover well above mulch or soil that holds moisture. On south and west walls, summer sun and heat stress the cover, so choose UV-rated material and a lighter color. Winter freezes test sealant joints, so use sealants rated for at least 0 degrees Fahrenheit.

Tools and Materials You'll Need

Tools: drill/driver, masonry bits (for brick or block), wood bits (for siding), bubble or laser level, tape measure, pencil or Sharpie, hand saw or miter saw with a fine-tooth blade, nut driver or screwdriver set.
Safety gear: safety glasses (plastic pieces fly), hearing protection when you're sawing, dust mask if you're drilling fiber cement or masonry, gloves when cutting hard PVC or metal.

How to Install a Mini Split Line Set Cover Step by Step

Prep the line set. Gently group the refrigerant lines, drain hose and electrical cable with tape or zip ties every 12 to 18 inches. Check the drain line so you don't get kinks or crushing during installation. Make sure the factory insulation is in good shape. If insulation gets compressed during installation, you lose the thermal barrier.
Set the base channel. Use a level to make sure base channels are installed straight and plumb. Hold the first straight section against the wall, mark the screw holes, pre-drill and fasten with appropriate screws. Use fasteners that match the type of siding you're covering. The base channel has to be securely anchored before you install the line set cover. Space fasteners every 16 to 24 inches.
Dry-fit and cut sections. Lay out straight runs and elbows from the wall cover down to the condenser. Cut pieces to length with a hacksaw. Deburr edges with a file so lids snap on cleanly. Install fittings and elbows according to the cover system so you get proper routing.
Handle turns and offsets. Use factory 90-degree elbows or flexible duct pieces to route around trim, ledges or stairs. Condensate drain hoses should keep a continuous downward slope. Maintain at least 1/4 inch per foot of slope for drainage inside the cover.
Snap on the covers. Once the base sections are screwed in and the split line sits inside, snap each cover piece on firmly. Work from the wall penetration downward so joints overlap like shingles and shed water.
Final alignment. Sight along the cover from several angles. Correct any twisting or bowing so the finished run looks straight against the wall.

Seal the Wall Penetration and Joints Correctly

Wall sleeve. Drill a 2.5 to 3.5 inch hole through the wall, angled 3 to 5 degrees downward toward the exterior. Insert a short section of PVC pipe or a factory wall sleeve. Using a proper wall sleeve blocks air leaks and keeps moisture from getting into the wall cavity.
Foam. Seal the wall penetration with low-expansion foam around the sleeve from both sides. Don't use high-expansion foam. It'll crush the insulation and refrigerant lines inside the sleeve.
Exterior sealant. Run a bead of UV-resistant silicone or polyurethane around the perimeter of the wall cover plate and any joints facing the weather.
Drip-shed thinking. Lap joints and bends should shed water, not catch it. On a vertical-to-horizontal transition, the upper piece overlaps onto the lower piece. Think of it like roofing shingles.

Field Tips for a Cleaner Install

Fastener choice. I use stainless or coated exterior screws instead of the cheap hardware that comes in some lower price kits. Bare steel screws leave rust streaks on light siding within a year.
Sun exposure. On south- and west-facing walls, stick with UV-proof PVC or PP in lighter colors. Don't bend covers tight against dark metal trim or dark roof surfaces. The heat buildup can warp lids.
Expansion gaps. Leave a 1/8-inch gap at the bottom or at long horizontal runs so plastic covers can expand and contract with temperature changes without buckling.
Service access. The installation should let you get to service valves and connections. Don't bury flare connections or charging ports inside the cover. Keep them at the outdoor unit where a tech can reach them without taking the entire run apart.
Aesthetics. Align line covers with existing trim lines, corners or downspouts so they blend in visually instead of looking randomly placed on the wall.

Common DIY Mistakes to Avoid

Too-small set cover. Stuffing a fat mini split line set into a small cover kit causes bulges, lids that won't snap and trapped condensate. If the group feels tight, size up to the next width.
Flat or uphill drain hose. Running the condensate drain line flat or with upward dips inside the cover leads to backups and water stains. Condensate drain hoses need a continuous downward slope at 1/4 inch per foot minimum.
Weak fastening. Covers screwed only at the top and bottom sag and rattle in the middle. Use screw spacing of 16 to 24 inches on center. The base channel has to be anchored before anything else goes on.
Unsealed wall penetrations. Skipping foam and sealant lets insects, bulk water and hot humid air into the wall cavity.
Over-tightened screws. Cranking screws crushes PVC or PP channels, and the cracks widen in cold weather. Go snug plus a quarter-turn, not gorilla-tight.

Mini Split vs Central AC: Any Difference in Line Set Covers?

Line size and count. A typical ductless mini split system runs one liquid line (1/4 inch) and one suction line (3/8 to 1/2 inch). A small central AC system or heat pump may have a 3/8-inch liquid line and a 3/4-inch suction line with thicker insulation. That larger group often needs a 4-inch cover.
Routing. Mini split or central AC runs differ in path. Mini splits usually exit straight behind the indoor unit and drop down. Central AC line sets may travel longer horizontal distances along a rim joist before dropping to the condenser.
Flexible duct segments. Flexible duct transitions help bridge odd offsets around brick ledges, rim joists or deck framing, which is common with conventional systems.

Cost and When to DIY vs Hire

Kit pricing. A 4-inch PVC cover kit with about 10 ft of straight channel, a wall cover and basic bends runs $55 to $90 at most home improvement stores. Metal kits and kits with extra fittings or longer runs push $100 to $120 or more. You'll often need more than one kit for runs over 15 feet.
Hardware and sealant add-ons. Budget $10 to $30 for stainless screws, masonry anchors, spray foam and sealant. That small spend on quality fasteners prevents callbacks and rust streaks.
When to call a pro. Call out a contractor if the wall penetration must be moved, if brick or stone coring is involved, or if your HOA or local code requires inspection of exterior changes. For an existing house building project or remodel, bundling the line cover with the full mini split install keeps labor cost lower than a standalone visit.

Maintenance and Long-Term Checks

Annual visual check. Look for cracks, UV chalking, loose screws or joints pulling apart. Sun-baked south and west walls take the most wear. A well-installed PVC cover on a shaded wall can last more than 15 years. Direct sun cuts that down.
Clearing debris. The bottom opening near the condenser pad has to stay clear of mulch, leaves or mud. Trapped moisture soaks up and can rot siding.
Repainting. If you painted it (especially a darker color), expect to refresh every 7 to 10 years in full sun. Clean, scuff-sand, apply bonding primer, then apply a topcoat.
After-service checks. Whenever an HVAC tech removes cover sections for repair, verify they re-snap and reseal everything. Don't assume it was done.

FAQ

Do mini split line sets have to be covered?

Codes don't universally require a line cover, but the IRC does require that insulation exposed to weather be protected from UV, moisture and physical damage. A line set cover is the most practical way to meet that requirement. Without one, foam insulation cracks from UV within one to two years, and exposed copper loses efficiency.

Low-voltage control cables that are designed to share the line set path are fine inside the same cover. High-voltage service feeders and unrelated circuits need separate, code-compliant channels per NEC requirements. Don't mix a 240V feed with refrigerant lines in a plastic snap channel.
