How to Run Mini Split Lines Through a Wall (Without Ruining Your House)

Updated October 7, 2026

Key Takeaways

• You'll drill a 2½ to 3 inch hole through the exterior wall, slope it slightly downward toward the outside, and route the mini split line set, condensate drain and control cable together through a protective sleeve.

• The most common DIY mistakes are hitting a stud, not angling the hole so water can drain out, kinking the line set and failing to seal the wall penetration against water and bugs. You'd want to take your time with each of these.

• Pre charged line sets can make the job easier since no-vacuum DIY systems eliminate the need for vacuum pumps, but you still need to protect the copper from kinks and avoid opening the system until everything is in place.

• In Knoxville and surrounding areas (Farragut, Maryville, Oak Ridge), homeowners can usually handle the wall routing themselves, but local code may require a licensed HVAC pro to handle refrigerant connections.

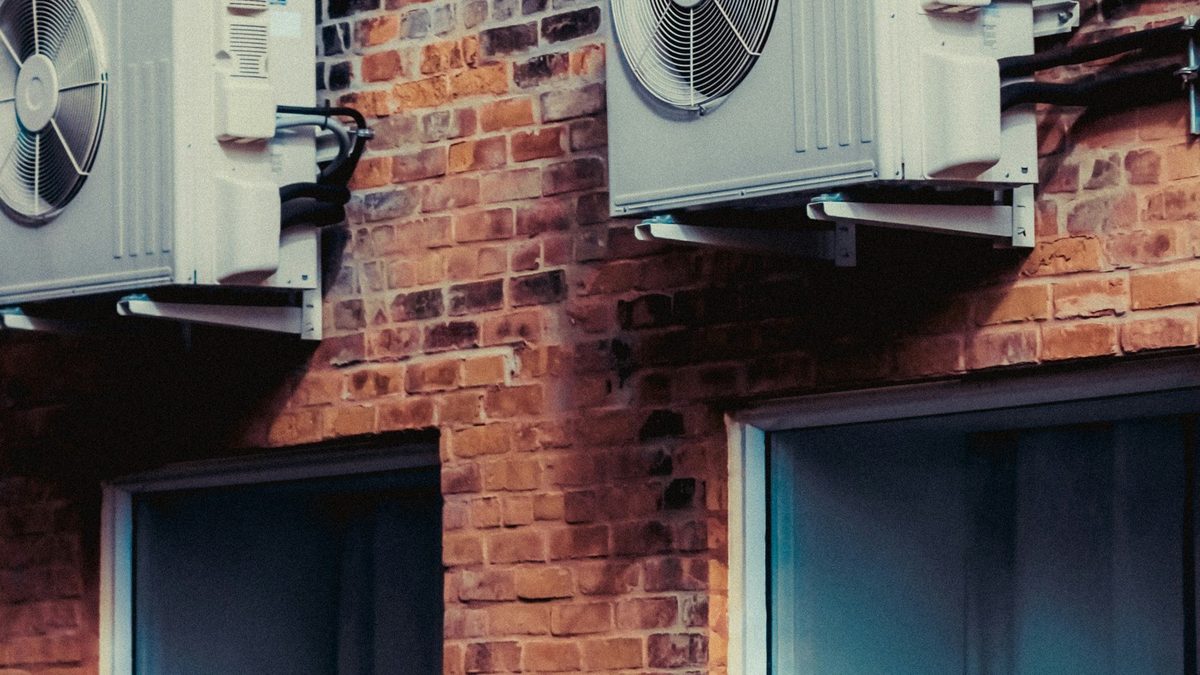

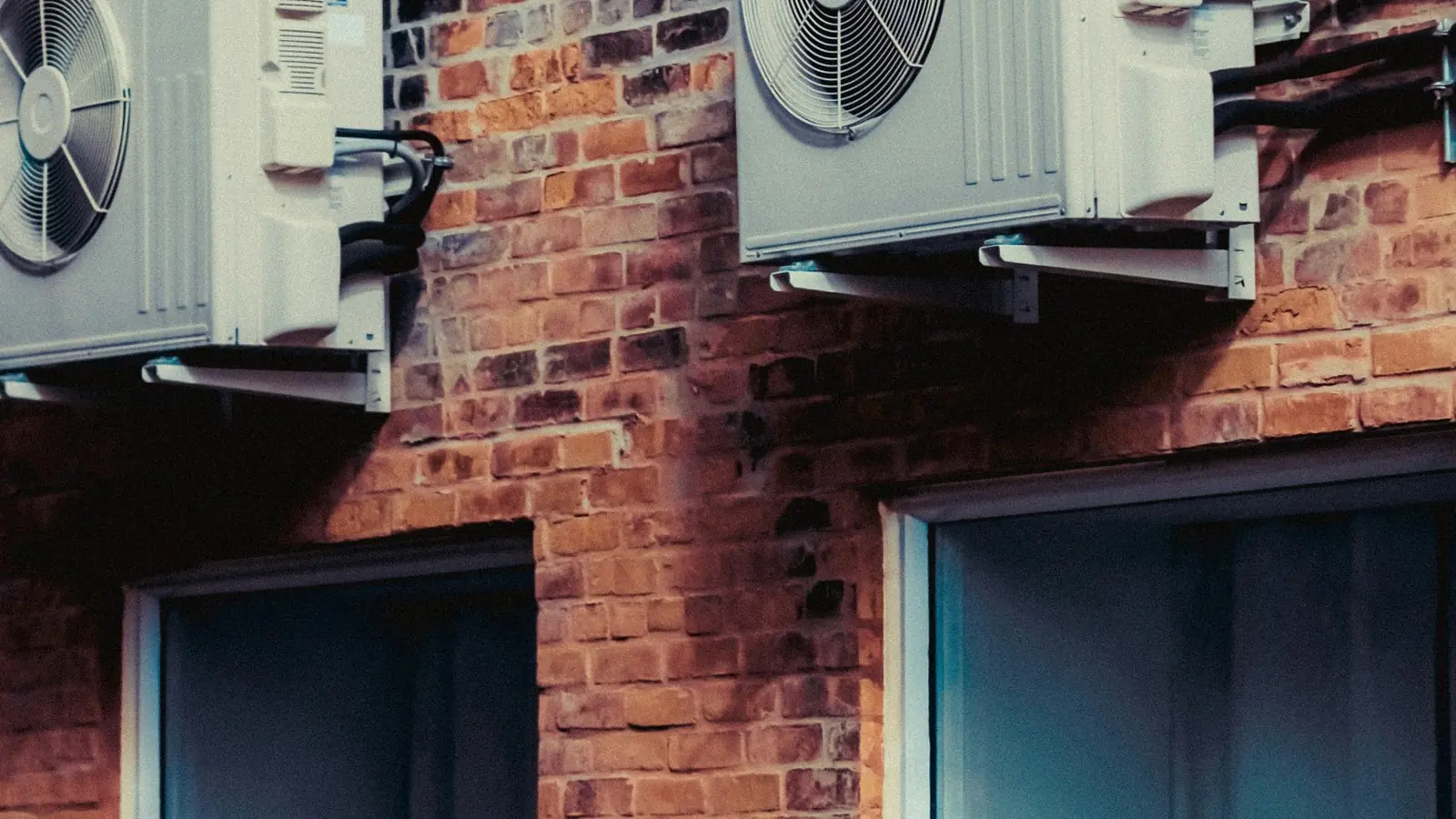

Running Mini Split Lines Through the Wall

I'm a builder in Knoxville who installs and repairs mini splits on real projects, from garages to bonus rooms, and I see the same few issues over and over when homeowners drill the wall for the line set. Running mini split lines through an exterior wall requires precision, but it's not magic. It's layout, the right tools, and patience.

This article covers only the wall penetration and routing of line sets, not full system sizing or electrical panel work. Proper installation requires following the manufacturer's instructions and your local electrical code. Whether your system uses pre charged lines or needs a vacuumed and charged setup, the wall routing steps are almost the same. Doing this part right prevents leaks, mold and ugly siding repairs later.

Tools, Materials and Safety Prep

Tools:

• hole saw that is 2½ to 3 inches (plus one that is rated for masonry if you have brick veneer)

• a drill bit that is long enough to drill the pilot hole, at least 12 inches long

• Impact driver or heavy-duty drill

• Level, tape measure, utility knife

• PVC sleeve or wall thimble

• Caulk gun with silicone or urethane sealant that is rated for exterior use

Materials:

• Your line set (typical sizes: ¼ inch for the liquid line, ⅜ or ⅝ inch for the suction line)

• Condensate drain hose and control cable

• Line set tape for bundling

• Low-expansion spray foam or backer rod for penetration sealing

• Exterior line cover channel

Safety:

• safety glasses and hearing protection (hole saws are loud)

• Dust mask if drilling old plaster

• Gloves when you handle the copper tubing so you do not hold it too tight and cause kinks

Planning the Line Set Route Inside and Outside the Wall

• The manufacturer's pattern for the inside unit is what you want to locate, and tape it to the wall. The exit hole center is marked at or just below the connection opening on the back of the unit.

• Use your stud finder to check for studs so you don't aim the hole straight through a framing member. In the Knoxville area, framing is usually 16 inches on center, but you should never assume without checking.

• Go outside and check where that hole will come out. Look for brick shelves, band joists, decks, downspouts and gas meters. Adjust if the exit point ends up somewhere ugly or blocked.

• Keep the line set run as short and direct as the manufacturer lets. Many mini split manuals tell you the maximum length of the line set (often 50–65 feet) and the change in elevation (usually 25 feet max). Read those numbers before you pick a wall location.

• Plan an exterior line cover that runs straight up or down, stays off window trim and leaves enough extra length for future service.

• What's the deal with Knoxville-area siding? Fiber-cement lap siding needs at least 6 inches of clearance to the ground, and 1 inch to slabs, steps and decks. Position the penetration so your flashing, trim or line cover does not break those rules.

Finding Studs, Wires and Pipes

• A quality stud finder is what you want to use to map two adjacent studs, then mark the center of the cavity between them. That is your target zone.

• An outlet directly below the planned hole suggests wiring runs through that stud bay. A bathroom or kitchen on the other side of the wall can mean possible plumbing. Old gas lines sometimes run in exterior walls - locate them from the basement or crawlspace.

• If you're worried about what's behind the drywall, pull the baseboard or cut a small inspection opening rather than taking a chance on a blind hole into a pipe. A 10-minute check can save you from a flooded wall or a live electrical short.

Drilling the Pilot Hole at the Right Slope

The center of the hole is marked using the paper guide from the manufacturer for the indoor unit. Double-check the height so the line set can sweep gently out of the back of the unit without a sharp bend. When you drill holes for a mini split install, you need a downward angle toward the outside - about ¼ inch drop per 12 inches of wall thickness. You need to maintain a downward slope through the wall to prevent condensation issues, and the condensate drain hose has to slope downward continuously to keep water flowing out of the building instead of back into the wall cavity.

• Use a long drill bit that is ¼ or ⅜ inch, angled slightly downward and drill straight through from inside to outside.

• Go outside and check where the pilot bit came out. Confirm the location relative to siding courses, brick joints or trim.

• In brick veneer walls common around Knoxville and Farragut, drill your pilot through drywall and sheathing first, then switch to a masonry bit outside to avoid blowing pieces out of the brick face.

• If the pilot hole comes out in a bad spot, pull back, patch and adjust. This is the cheap time to change the plan.

Cutting the Main Hole and Adding a Sleeve

• Most residential mini split line sets plus drain and wire fit through a hole that is 2½ to 3 inches. Check the manual - some larger or factory kits that are packed together may need 3½ inches. Don't guess when a number is printed right in the instructions.

• Drill from the inside with a hole saw until the pilot bit breaks through the sheathing. Either finish from outside or go slowly to avoid blowing out siding, especially on fiber-cement lap boards.

• Use a wall sleeve to protect coolant lines during mini split installation. A short length of Schedule 40 PVC or a wall sleeve supplied by the manufacturer works. Manufacturer instructions usually call for a wall-embedded pipe to help prevent hazards like scrapes or getting pinched on sharp framing edges.

• Dry-fit the sleeve with the same downward slope as the pilot hole, and trim it flush or slightly sticking out on the exterior so your sealant and line cover can tie in well.

• The sleeve also centers and protects the line set group from the rough edge of the framing and sheathing, which matters a lot when you are pulling tight copper through the building envelope.

Pulling the Mini Split Line Set, Drain and Cable Through the Wall

• Uncoil the line set gently on the ground outside. Factory flare fittings should be kept protected and wrapped. Avoid kinking the refrigerant copper tubing during the installation process - copper tubing doesn't forgive tight turns.

• Tape the drain hose and control cable to the line set every 12–18 inches with line set tape, placing the tape so the group stays compact enough to pass through the sleeve.

• Most kits are designed to be pushed from inside out through the wall, then bent gently down toward the condenser location. One person inside helping guide and one outside pulling gently works far better than one person trying to force the entire group alone.

• If you are using a conventional system, those installations often contain air from the atmosphere in the copper tubing, and conventional systems need evacuation procedures after installation. Evacuation gets the refrigerant circuit ready before operation by removing air and moisture. Moisture and gases that are non-condensable can damage the mini split compressor, and moisture in refrigerant piping can damage the system over time. Conventional systems also need leak testing after installation - leak testing is essential for checking that the system integrity is solid. Proper sealing methods should be used to prevent leaks in the installed lines.

• If you're using a DIY system, things are different. DIY systems are factory-prepared sealed refrigerant lines. Pre charged line sets are factory-prepared refrigerant assemblies that eliminate the need for conventional field evacuation procedures. They use specialized connectors to maintain sealing and are designed to stay sealed until connected to equipment. Current MRCOOL DIY systems use R-454B refrigerant in their line sets. No-vacuum DIY systems eliminate the need for vacuum pumps completely, which is a real advantage for you. But if you cross-thread or over-tighten a flare connection, the stored refrigerant charge can leak out in hours. You can't recover or replace it yourself.

Protecting and Hiding the Line Sets Outside

• Install a PVC or metal line cover (line hide) from the wall penetration down to the outdoor condenser pad. Mount it plumb and secure it into framing or solid sheathing, not just thin siding.

• Support the line set group at least every 3–4 feet vertically. Add extra support near turns and at the condenser connection to eliminate strain on the flare fittings.

• Avoid sharp 90-degree turns. Use large, gentle curves so the suction line does not get smashed. A kinked suction line can ruin system efficiency and shorten compressor life. That is an expensive replace job.

• In Knoxville, UV exposure and summer heat are hard on exposed insulation. Insulate all refrigerant lines with closed-cell foam (½ inch minimum, ¾ inch is better for the suction line), and cover all exterior runs. UV breaks down foam fast - a quality line cover channel pays for itself by protecting insulation for years.

Sealing the Hole Against Water, Air and Bugs

• Seal the gap between the sleeve and the wall on both inside and outside faces with sealant that is rated for exterior use. Don't block the sloped bottom where water needs to drain out.

• Stuff foam rod or low-expansion foam into large gaps around the lines inside the sleeve, then top with flexible sealant or putty that lets you get back in for future service access.

• On the exterior, the bottom of the caulk bead can be sloped, or you can add a small flashing piece over the top of the sleeve so water sheds away from the opening instead of pooling up.

• With fiber-cement lap siding, bridge sealant from the round sleeve to the flat face of the board. Don't fill the needed 1 inch clearance to decks or slabs - that clearance exists for a reason and the siding manufacturer's warranty depends on it.

DIY Mistakes and When to Call a Pro

• Failing to slope the hole, so condensate backs into the wall and causes mold

• Kinking the line set during the pull - that bit of smashed copper means restricted refrigerant flow and excess strain on the compressor

• Leaving bare insulation exposed to UV where it cracks within a season

• Skipping proper sealing so wasps, humidity and rain get into the wall cavity

Pre charged system warning: What's the catch with pre charged line sets? While they can avoid the need for a vacuum pump, they leave zero room for error. If you cross-thread a flare nut, the pressure drops and the refrigerant is gone. You can't shop for a fill-up at the hardware store. You'd need a licensed tech with equipment to recover and recharge.

• Long line sets above manufacturer limits or multiple turns

• Runs through structural beams, a ceiling space or fire-rated assemblies

• Any job where the system needs to be evacuated and measured with refrigerant charge

• Verification of local codes is essential for refrigerant handling and installation. Knoxville has adopted the 2024 International Codes, and your local building department can tell you exactly what requires a permit and a licensed installer in your area. Do not assume you can handle everything just because the brand sells it as a "DIY" unit.

Take your time with the layout and sealing, sell yourself on doing it right the first time, and this job won't give you a hard time later. If you decide the refrigerant side is beyond your comfort zone, there's no shame in running the lines yourself and letting a licensed HVAC tech make the final connections. That's the advice I give everybody, and it's the same thing I'd tell a person sitting in my own house.
