How to Level a Mini Split Condenser (Outdoor Unit)

How to level a mini split condenser is one of those small jobs that saves you from an expensive one later. Your outdoor unit does not need to be perfectly level, but it needs to last. I've seen you run your system for years on a crooked pad without giving it a second thought. Then the compressor will start to make noise, or the fan will shake into the siding, or the whole thing will shift after a wet spring. Here's how it is handled, what tools you have to have, and when to stop and call a pro.

Updated October 12, 2026

Key Takeaways

• A ductless mini split's outdoor condenser unit does not need laser precision, but it should be level within about 1/4 inch across the pad. The reason for this is to protect the compressor and keep vibration down.

• In a climate like Knoxville's, with clay dirt, freeze and thaw cycles and a mean annual temperature of 59.4°F, the ground moves around and regularly pushes pads out of level after a couple of seasons.

• The DIY process is simple for small fixes: power off the system, check level in both directions, shim or re-set the pad, then confirm line set tension and room around the unit before you start it up again.

• If the condenser unit is more than about 1–1.5 inches out of level, the pad is actively sinking, or refrigerant lines feel tight when you lift a corner, call an HVAC contractor instead of forcing it.

• Check your outdoor unit each spring before cooling season. Catching it early prevents compressor damage, refrigerant leaks and rust.

Why a Level Mini Split Condenser Matters

An uneven outdoor unit can cause too much vibration during operation, and that vibration moves into the panels, the bolts, the refrigerant lines and sometimes the house itself. It can also stress the refrigerant lines, which may lead to leaks over time. When you consider that mini splits are 30% more efficient than central systems, but only when they are installed and maintained correctly, a level unit ensures that refrigerant circulates efficiently through the entire system. With a single zone mini split that uses 500 to 700 watts per hour, any efficiency loss from a bad installation will add up all summer long.

How Level Does a Mini Split Need to Be?

Let me clear something up right away: your condenser does not need to be perfectly level to the tiniest fraction of an inch, and it won't instantly fail from a slight pitch. Manufacturers assume a flat, stable support, but most installation manuals specify a tilt tolerance of about ±2 degrees, which works out to about 3/8 inch per foot. The manufacturer's installation manual comes first over general advice, so check yours first.

For most residential mini split condensers, here's my rule of thumb: use a quality spirit level to make sure the unit is level in both directions, left to right and front to back. With a 9- to 24-inch level, the bubble should be centered or just touching the center lines. If you're out by more than about 1/4 to 3/8 inch across the pad width, correct it.

A small tilt is usually okay if the unit is stable and not wobbling, but a large tilt can pool oil in one end of the compressor and put extra load on the bearings. Make sure all four mounting feet are supported evenly. Regardless of what the bubble says, the level needs attention if you see any wobbling when you gently push on a corner, or if a corner is sitting in mud or washed-out soil.

Common Signs Your Condenser Unit Isn't Level

Most of the time you'll notice symptoms before you ever pick up a level. Here's what to watch for:

• Leaning to one side, the outdoor unit is obviously out of level

• One corner of the pad is buried in dirt or is floating above the ground

• If the cabinet is touching siding, lattice or a downspout on one side, it is too last

• There's new humming or buzzing that was not there before

• Fan blade whooshing unevenly or scraping

• When it cycles on, the whole outdoor AC unit is "walking" or shifting slightly

• Condensate is pooling under one corner instead of draining away

• There is more frost or ice on one side of a heat pump in winter

• Short cycling or the system working harder than it should

Tools and Materials You'll Need to Level a Mini Split Condenser

• 9–24 inch spirit level

• Shovel or trenching spade

• Hand tamper or a 4x4 block to pack it down

• Work gloves and safety glasses

• Flat pry bar (for moderate fixes)

• Gravel or crushed stone (not dirt) to fix the base

When to Call an HVAC Pro

Before you touch the outdoor unit, you'll want to power off the HVAC system at the disconnect and at the breaker panel. You are dealing with 240V electricity, sharp edges on the sheet metal of the condenser unit, and equipment that can weigh 150 to 350 pounds. Never work in standing water or during a thunderstorm.

• The installer must verify local wind codes and specific anchoring requirements for your area

If your mini split is still under manufacturer or installer warranty, check the fine print before moving or lifting the outdoor unit on your own. Some warranties need a certified HVAC technician for any adjustment that involves moving the condenser.

Level a Mini Split on an Existing Pad

This covers the most common DIY scenario: the outdoor unit is a bit out of level on a plastic or concrete pad that is settled on one side but has not completely failed.

Step 1: You'll want to power down the system at the thermostat, breaker panel and outdoor disconnect. Wait a few minutes for the fan and compressor to fully stop.

Step 2: You'll want to place the level on the top of the outdoor unit in both directions, left to right and front to back. Note which corner is low.

Step 3: Gently push on the cabinet corners to confirm the unit is not bolted to the pad. If it is, carefully remove the bolts while supporting the cabinet so it doesn't shift.

Step 4: For small fixes, slide thin exterior-rated shims under the low side of the pad, not directly under the metal base rails. Re-check with the level. A slight tilt can cause refrigerant leaks over time, so take the few extra minutes to get it right.

Step 5: For moderate settling, partially lift the low side of the pad with a flat pry bar or 2x4 while another person slides packed gravel or shims underneath. You'll want to make sure the line set and electrical whip stay relaxed the entire time.

Step 6: After each adjustment, re-check unit level in both directions. Make sure the condenser unit doesn't rock, and check that the line set, drain and electrical connections still have gentle curves without strain.

Final check: Restore power, run the system in cooling mode, and stand next to the outdoor unit. Listen for smooth compressor and fan operation. You should notice reduced vibration compared to before. A level outdoor unit prevents too much vibration during operation. That translates directly to quieter system performance and longer equipment life.

Fixing a Sinking Mini Split Pad

In clay-heavy East Tennessee yards, or next to downspouts, pads sometimes sink enough that using shims is just a band-aid. Stability of the pad or mounting system is crucial to avoid tipping over time, so sometimes you need to rebuild.

3. Set a thicker plastic or composite condenser pad on the packed base. These are good for 15–20+ years in freeze and thaw climates versus 5–10 years for concrete

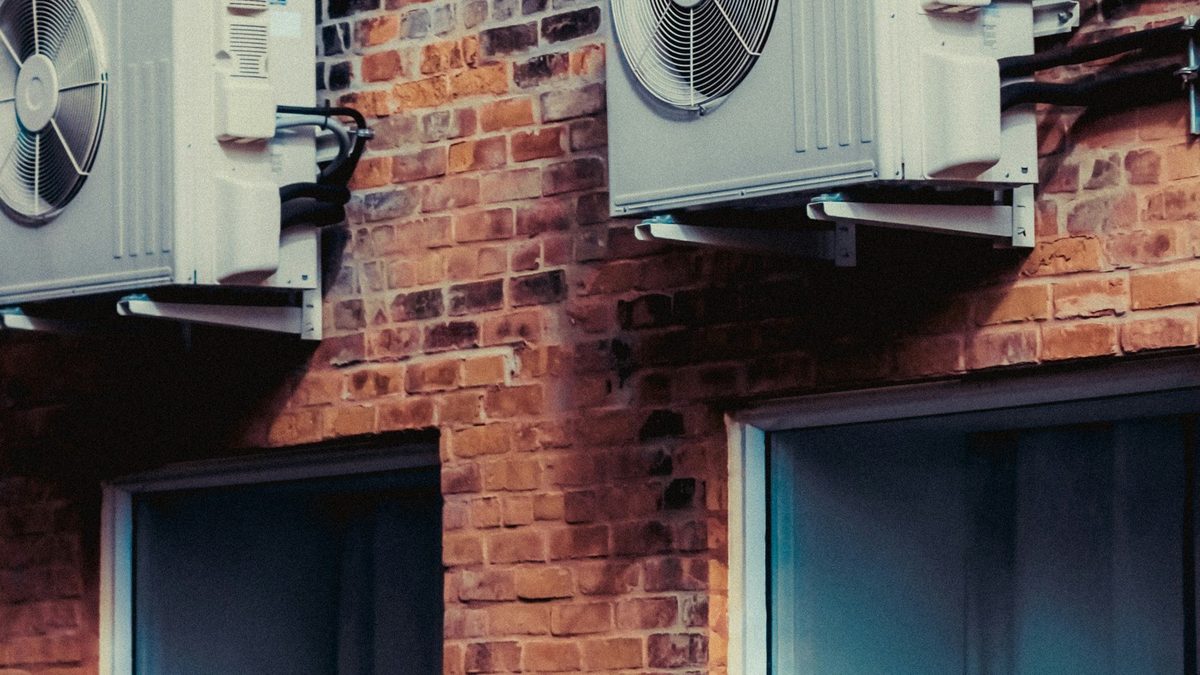

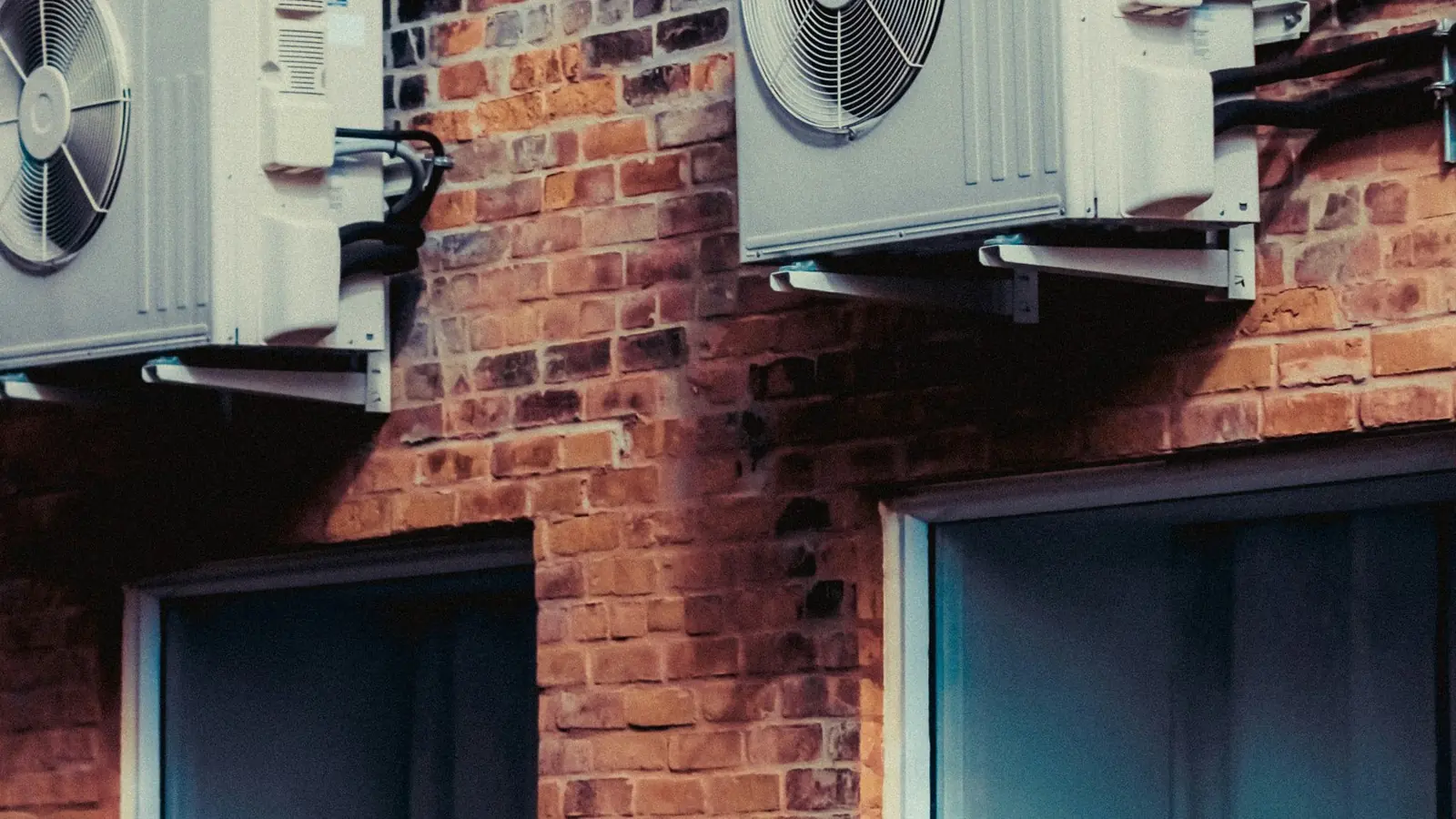

Wall Brackets and Risers to Keep the Unit Off the Ground

Risers are factory or aftermarket plastic or rubber feet that mount between the condenser base rails and the pad, usually 3–6 inches tall. You can use rubber or composite riser feet to keep the unit elevated and stable. They must sit on a level surface and be the same height, or they'll tilt the unit even if the pad is flat.

How Leveling Affects Drainage, Defrost and Noise

Cooling mode: Condensation and rainwater are supposed to drip and drain away from the cabinet. A badly tilted pad can pool water under one corner, and improper drainage from a tilted unit increases rust and mold risk. It also increases risks of electrical damage over time. Check for clear drainage paths to prevent accumulation of water or ice around the base.

Heating mode: During defrost cycles in winter, the outdoor unit can produce water that must drain away from the pan underneath. Because of a tilt, ice dams and loud scraping or buzzing from ice contacting the fan or shroud can happen. This is a real deal-breaker for operation in a climate with Knox County's winter design temperature of 19°F.

A slight tilt away from the house can actually help keep water off the foundation, but the condenser unit itself should stay level on top of that slope via the pad and risers. Into the house structure, a level, solid base also reduces vibration that is transmitted. In my Knoxville projects, I see fewer "mystery hums" in bedrooms when the outdoor AC unit is truly stable and mounted on a proper base.

Local Considerations Around Knoxville and East Tennessee

I work in Knoxville, Farragut, Maryville and Oak Ridge. I see the same leveling problems on repeat. Our clay soils expand and contract through the year. With Knox County's winter design temperature of 19°F and a freezing index of 210, soil heaves can slowly tilt light plastic pads that were set straight on dirt.

When building or remodeling, plan a dedicated, compacted gravel base for the mini split outdoor unit the same way we plan proper anchor bolts for foundations. Use 1/2 inch minimum, embedded 7 inches, no more than 6 feet apart and within 12 inches of every corner and sill-plate splice. Small details that keep things stable long-term.

Pick your condenser location with shade, mower access, service access and snow shedding from roofs in mind. If you are constantly fighting erosion under the pad, you picked the wrong spot. Fix the location problem, not just the symptom.

Mini Split Condenser Leveling Questions

How out of level is too much for a mini split outdoor unit?

On most residential mini splits, if you can clearly see the lean from 10–15 feet away, or the bubble on a standard level is more than about one line off center, it is time to correct it. Most manufacturers allow around ±2 degrees, which works out to about 3/8 inch per foot. Whether a small tilt matters is a common question I get. It does over an extended period, because an unlevel unit can cause refrigerant leaks over time.

Can You Run a Mini Split If the Condenser Isn't Level?

A small tilt usually is not an emergency, but plan to fix it soon. Mini splits operate best when run continuously, and running one on a tilted pad adds compressor strain every hour it is on. A big tilt, rocking or contact with the house is a reason to shut it off and adjust before damage happens. Mini splits cost about $258.13 per month to run in Toronto as a reference point for operating costs, and you don't want to waste that electricity on a system fighting itself.

Plastic Pad, Concrete Pad or Wall Mount?

Heavy concrete is very stable but harder to replace or re-adjust if it cracks. Quality plastic pads on a packed gravel base work well for most Knoxville yards and last 15–20 years in our climate. Wall mounts are best where ground is sloped, flood-prone or space is tight. Mini splits that are sized right prevent overworking and inefficiency, so match your pad or bracket to your specific unit's weight.

Is leveling a mini split condenser a DIY job or should I always hire a pro?

If you're comfortable with basic tools, you can handle small pad shimming and leveling. But anything involving moving the outdoor unit more than an inch, adjusting refrigerant lines or rebuilding the base under a heavy heat pump is better left to an HVAC contractor. The complete job of resetting a condenser on a rebuilt pad usually costs less than replacing a compressor that failed from running unlevel, so don't wait until the temperature hits 95°F in July to deal with it.
